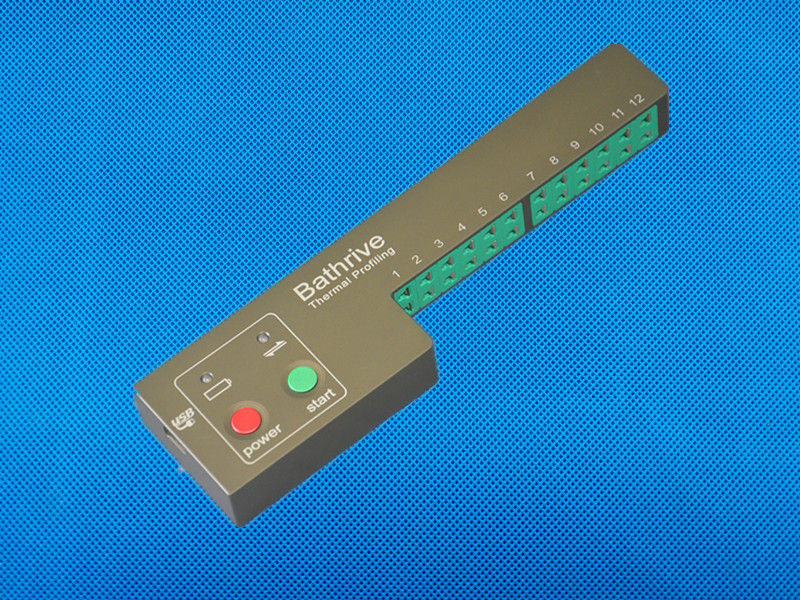

Thermal analyzer models: Bathrive -12 k
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xAlta luz | smt pressure sensor,kic thermal profiler |
---|
models: Bathrive - 12 k
Introduction of instrument:
The instrument is specially used for wave soldering machine, reflow solderinginLine type temperature measuring device with wave soldering, reflow soldering, dual function, has0.05S/channelTo 600S/channelbetweenThe miningsampleRate and recordAccording to the total 3.9 million pointsCan store an infinite set of curve data,, cooperatePCThe background analysis function of the software can be concerns about temperature curve and the production process;sixchannelThe on-line design,From an off-line analyzer.By electronic manufacturing enterprises are widely used in SMT and plug-insPCBWelding process,At the same time can also be applied to other temperature surveying and mapping industry
Areas of application:
Gauges the reflow soldering, wave soldering, tunnel furnace, and all kinds of oven temperature measuring instruments,
The instrument features:
One key operation, simple and convenient;
Human interface, powerful software analysis;
USB data transfer and USB charging;
The large capacity storage,recordAccording to the total 3.9 million pointsCan store continuously infinite set of curve data,
Design, low power consumption standby mode automatically switch power saving mode, can test using 5 hours continuously
Technical parameters:
Type no. :DT-12K
Test channels:12CH
Thermal couple:KType thermocouple
Sampling interval:0.05S/channel~~600S/channel
